Traditional Mass Interconnect Technology
Setting the Standard for Mass Interconnect

Explore TITAN

Introduction

Receivers

Modules

Contacts

ITAs

Next Steps

Find a Part

Downloads:

Brochure

Introduction

TITAN sets the standard for Mass Interconnect performance, configuration modularity and long term reliability. TITAN has been designed to offer exceptional configuration flexibility for use with any ATE platform and offers unparalleled I/O density coupled with the widest selection of contact types available for Mass Interconnect.



Customer Benefits In Using TITAN:
  • Rugged Mass Interconnect
  • High I/O density offerings
  • Can utilize signal, power, coax, fiber optic, and pneumatic contacts within a single TITAN system interface

Receivers

The TITAN series mass interconnect comes in a variety of sizes to accommodate most test type architectures.  Click on the links below to view each of our TITAN density configurations.

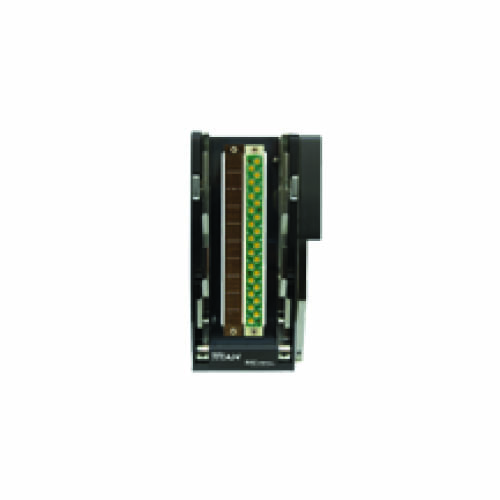

2 Slots
15 Slots

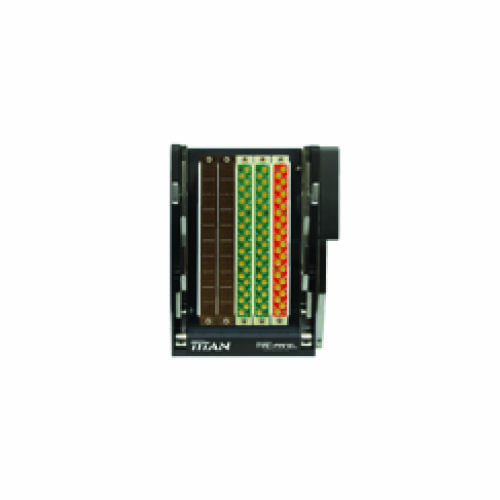

5 Slots
25 Slots
10 Slots

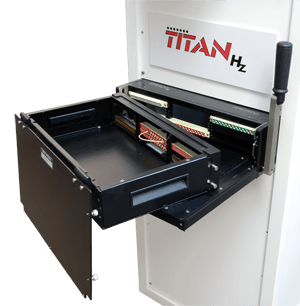

TITAN HZ

TITAN HZ is the latest member of the TITAN family. Configured in a horizontal format, the TITAN Hz is a perfect choice for applications that require a lower profile interface or for interfacing to bed of nails test fixtures.

TITAN HZ features:

  • Low Profile
  • Up to 12 Horizontally Mounted TITAN Modules
  • Up to 2400 Signal Connections
  • Combine High Density Signal I/O with Power and Coax
  • Horizontal Configuration With Integrated 11 inch Test Fixture Shelf Standard
  • Ideal Interface for Bed of Nails Fixture Applications
  • Configure With Engagement Handle on the Left or Right Side of the Receiver

Modules

   modules support a wide variety of signal types including HD signal, power, coax and pneumatic. Click the links below to explore our different module families that work with TITAN.

Signal

Enclosure, ITA, 25 Slot, Hinged, Recessed Handle, 6Ó Deep, TITAN

Hybrid

Module, ITA, Mini Coax, 24 Position

Power

DAK, PCB, Ext, X3 68 Pin VHDCI Male

Fiber Optic

Coax

DAK, Cable, 25 Pin D-Sub, Female

PCB Adapter

DAK, Cable, Extended, 562897, 37 Pin D-Sub, Female

Contacts

Signal

Read More

TITAN signal contacts are one of the main differentiators when it comes to what makes TITAN stand out. With a 1mm cross section
the 1mm signal contacts offer superior electrical performance over traditional 0.6mm contacts and is significantly stronger; more than 300% stronger, making it far less susceptible to damage in the real world.
  • 1mm signal contact provides 5 amps, continuous
  • 300% stronger

Pneumatic

Read More

Our pneumatic contacts are designed to fit into any module that is compatible with any “mini” coax or power contact position; this means that all three are interchangeable and inter-mixable within the same module.

  • Made of Brass 360 Material
  • Maximum working pressure: 100 PSI
  • Cycle Life:  20,000

Power

Read More

TITAN Supports both micro and mini power coax contacts.  Details below:

  • Micro-power contact – 25 amps continuous
  • Mini-power contacts – 50 amps continuous

Pre-Wired/Terminated Contacts for Modules

Read More

Our Custom Patch Cord Configurator "Easy Cable" helps to define a set of contacts and customer defined wire and wire length to terminate to.

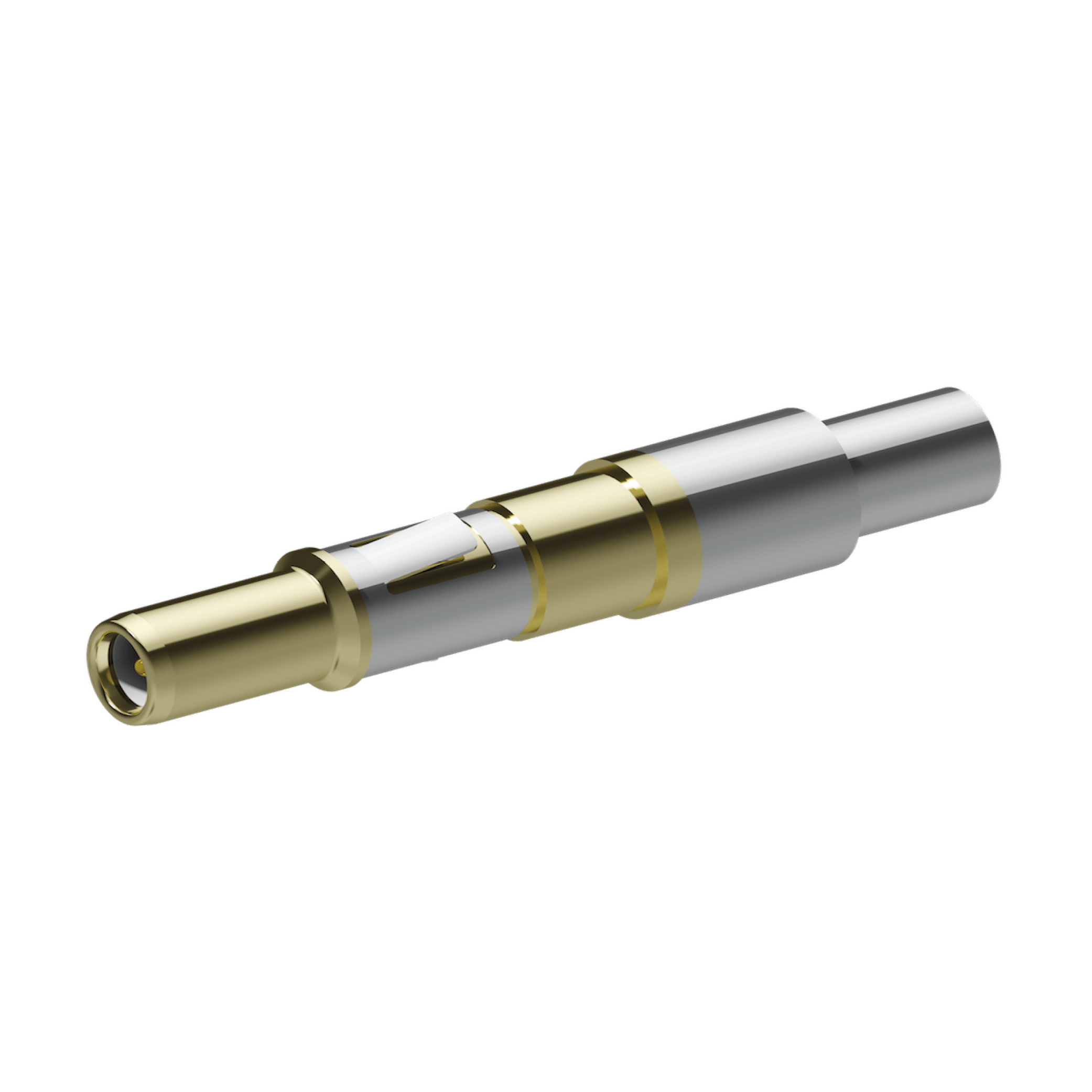

Coax

Read More

We carry both micro and mini coax contacts. Details below:

  • Micro-coax contact – 2 GHZ 50 ohms
  • Mini-coax contact- up to 1.5 GHZ 50 ohms

ITAs

TITAN supports the use of custom designed or a prefabricated ITAs, whichever fits your needs the best.  Check our Wiring Services for help on any custom wiring needed on your project.

ITA Frames

Read More

TITAN ITA Frames come in either 2, 5, 10, 15, 25 and dual tier slot configurations and are machined from rugged stainless steel and aluminum material.

ITA Enclosures

Read More

TITAN supports 2, 5, 10, 15, and 25 slot COT enclosures.

Optional features include:

  • Hinged Access
  • Recessed Handles for easy handling

Find a Part

ImagePart #Short DescriptionCustomer DrawingInstruction Sheet3d PdfStp FileProduct DetailsAdd to quotehf:tax:component_category
Contact, Female, POF, to suit FEASA cable
562309Contact, Female, POF, to suit FEASA cable
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-female pof_contacts
Contact, Male, POF, to suit FEASA cable
562308Contact, Male, POF, to suit FEASA cable
Select Quantity:
contacts pof_contacts
Extraction Tool, Rugged X Beam
412810Extraction Tool, Rugged X Beam412810.stp
Body Material :

Aluminium Alloy

Select Quantity:
tooling
Contact, Receiver, High Power, Female, 150 Amp
5517701Contact, Receiver, High Power, Female, 150 Amp5517701.stp
  • Designed and manufactured to meet the demands of high power testing applications
  • Used in the following MAC Panel product families:
Select Quantity:
contacts power_contacts
Receiver, 10 Slot, TITAN
561353Receiver, 10 Slot, TITAN561353-CU561353-3D561353-STP
  • Receivers house all receiver side modules, PCB adapters, cable assemblies and patchcords, as well as DAKs (SCOUT only) and mate with the interchangeble test adapater (ITA).
  • The ITA Frame mates to the receiver and houses modules, PCB adapters, cable assemblies and patchcords which connect to the UUT.
Select Quantity:
receivers
Receiver, 15 Slot, TITAN
561354Receiver, 15 Slot, TITAN561354-CU561354-3D561354-RevG-STP
  • Receivers house all receiver side modules, PCB adapters, cable assemblies and patchcords, as well as DAKs (SCOUT only) and mate with the interchangeble test adapater (ITA).
  • The ITA Frame mates to the receiver and houses modules, PCB adapters, cable assemblies and patchcords which connect to the UUT.
Select Quantity:
receivers
Receiver, 2 Slot, TITAN
561350Receiver, 2 Slot, TITAN561350-CU561350-3D561350-STP
  • Receivers house all receiver side modules, PCB adapters, cable assemblies and patchcords, as well as DAKs (SCOUT only) and mate with the interchangeble test adapater (ITA).
  • The ITA Frame mates to the receiver and houses modules, PCB adapters, cable assemblies and patchcords which connect to the UUT.
Select Quantity:
receivers
Receiver, 25 Slot, TITAN
561351Receiver, 25 Slot, TITAN561351-CU561351-3D561351-STP
  • Receivers house all receiver side modules, PCB adapters, cable assemblies and patchcords, as well as DAKs (SCOUT only) and mate with the interchangeble test adapater (ITA).
  • The ITA Frame mates to the receiver and houses modules, PCB adapters, cable assemblies and patchcords which connect to the UUT.
Select Quantity:
receivers
Receiver, 5 Slot, TITAN
561352Receiver, 5 Slot, TITAN561352-CU561352-3D561352-STP
  • Receivers house all receiver side modules, PCB adapters, cable assemblies and patchcords, as well as DAKs (SCOUT only) and mate with the interchangeble test adapater (ITA).
  • The ITA Frame mates to the receiver and houses modules, PCB adapters, cable assemblies and patchcords which connect to the UUT.
Select Quantity:
receivers
Receiver, TITAN Hz
561395Receiver, TITAN Hz
  • Receivers house all receiver side modules, PCB adapters, cable assemblies and patchcords, as well as DAKs (SCOUT only) and mate with the interchangeble test adapater (ITA).
  • The ITA Frame mates to the receiver and houses modules, PCB adapters, cable assemblies and patchcords which connect to the UUT.
Select Quantity:
receivers
Contact, ITA, High Power, Male, 150 Amp
5517700Contact, ITA, High Power, Male, 150 Amp5517700.stp
    • Designed and manufactured to meet the demands of high power testing applications
    • Used in the following MAC Panel product families:
Select Quantity:
contacts power_contacts
Frame, ITA, 10 Slot, TITAN
561453Frame, ITA, 10 Slot, TITAN561453.stp
  • Receivers house all receiver side modules, PCB adapters, cable assemblies and patchcords, as well as DAKs (SCOUT only) and mate with the interchangeble test adapater (ITA).
  • The ITA Frame mates to the receiver and houses modules, PCB adapters, cable assemblies and patchcords which connect to the UUT.
Read more
ita-interchangeable-test-adapters
Frame, ITA, 15 Slot, TITAN
561454Frame, ITA, 15 Slot, TITAN561454.stp
  • Receivers house all receiver side modules, PCB adapters, cable assemblies and patchcords, as well as DAKs (SCOUT only) and mate with the interchangeble test adapater (ITA).
  • The ITA Frame mates to the receiver and houses modules, PCB adapters, cable assemblies and patchcords which connect to the UUT.
Select Quantity:
ita-interchangeable-test-adapters
Frame, ITA, 2 Slot, TITAN
561450Frame, ITA, 2 Slot, TITAN561450-CU561450-3D561450-STP
  • Receivers house all receiver side modules, PCB adapters, cable assemblies and patchcords, as well as DAKs (SCOUT only) and mate with the interchangeble test adapater (ITA).
  • The ITA Frame mates to the receiver and houses modules, PCB adapters, cable assemblies and patchcords which connect to the UUT.
Select Quantity:
ita-interchangeable-test-adapters
Frame, ITA, 25 Slot, TITAN
561451Frame, ITA, 25 Slot, TITAN561451-cu561451-3D561451-STP
  • Receivers house all receiver side modules, PCB adapters, cable assemblies and patchcords, as well as DAKs (SCOUT only) and mate with the interchangeble test adapater (ITA).
  • The ITA Frame mates to the receiver and houses modules, PCB adapters, cable assemblies and patchcords which connect to the UUT.
Select Quantity:
ita-interchangeable-test-adapters
Frame, ITA, 5 Slot, TITAN
561452Frame, ITA, 5 Slot, TITAN561452-CU561452-3D561452-STP
  • Receivers house all receiver side modules, PCB adapters, cable assemblies and patchcords, as well as DAKs (SCOUT only) and mate with the interchangeble test adapater (ITA).
  • The ITA Frame mates to the receiver and houses modules, PCB adapters, cable assemblies and patchcords which connect to the UUT.
Select Quantity:
ita-interchangeable-test-adapters
Frame, ITA, 50 Slot, Dual Tier, TITAN
561446Frame, ITA, 50 Slot, Dual Tier, TITAN561446-CU561446-3D561446-STP
  • Receivers house all receiver side modules, PCB adapters, cable assemblies and patchcords, as well as DAKs (SCOUT only) and mate with the interchangeble test adapater (ITA).
  • The ITA Frame mates to the receiver and houses modules, PCB adapters, cable assemblies and patchcords which connect to the UUT.
Select Quantity:
ita-interchangeable-test-adapters
Frame, ITA, TITAN Hz
561396Frame, ITA, TITAN Hz561396-CU561396-3D561396-STP
  • Receivers house all receiver side modules, PCB adapters, cable assemblies and patchcords, as well as DAKs (SCOUT only) and mate with the interchangeble test adapater (ITA).
  • The ITA Frame mates to the receiver and houses modules, PCB adapters, cable assemblies and patchcords which connect to the UUT.
Select Quantity:
ita-interchangeable-test-adapters
Contact, Female, Signal, 1mm, crimp
562150Contact, Female, Signal, 1mm, crimp562150-CUIN562150562150-3D
  • Up to 400% stronger than other high density connectors in the field of automatic test equipment; these typically use much smaller 0.6mm contacts.
  • Used in all major MAC Panel product families, including:
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-female signal_contacts
Contact, ITA, Mini Coax, RG 316, Navy Part # 1899AS284-01, 1899AS284-04
563700Contact, Male, Signal, 1mm, Crimp, 20-24AWG563700-CUIN563700563700-3D
  • Up to 400% stronger than other high density connectors in the field of automatic test equipment; these typically use much smaller 0.6mm contacts.
  • Used in all major MAC Panel product families, including:
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-male signal_contacts
Contact, Male, Signal, 1mm, Crimp, 26-28AWG
562948Contact, Male, Signal, 1mm, Crimp, 26-28AWG
  • Up to 400% stronger than other high density connectors in the field of automatic test equipment; these typically use much smaller 0.6mm contacts.
  • Used in all major MAC Panel product families, including:
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-male signal_contacts
Contact, Female, Signal
0884012R-01Contact, Female, Signal0884012R-01-CUIN 0884012R-010884012R-01-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-female signal_contacts
Contact, Male, Signal
0883012-02Contact, Male, Signal0883012-02-cuIN 0883012-020883012-02-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-male signal_contacts
Contact, Female, 10 amp Power
0884013R-01Contact, Female, 10 amp Power0884013R-01 REV E0884013R-01-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-female power_contacts
Contact, Male, 10 amp Power
0883013-02Contact, Male, 10 amp Power0883013-02-CUIN 0883013-020883013-02-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-male power_contacts
Contact, Female, Signal
0884022R-01Contact, Female, Signal0884022R-01-CU0884022R-01-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-female signal_contacts
Contact, Signal, Female Crimp, Discrete Wired LIF
HST-806-FCContact, Female, Signal, 0.6mm, crimpHST-806-FC-CUIN HST-806-FCHST-806-FC-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-female signal_contacts
Contact, Signal, Male Crimp, Discrete Wired LIF
HST-806-MCContact, Male, Signal, 0.6mm, crimpIN HST-806-MCHST-806-MC-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-male signal_contacts
Contact, Male, Signal, 0.6mm, for PCB
562054Contact, Male, Signal, 0.6mm, for PCB562054-CU562054-3D
  • 400% Stronger than other .6mm contacts offered in the field of automatic test equipment.
  • Used in all major MAC Panel product families, including:
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-male signal_contacts
Contact, Female, Mini Power
0884011-01Contact, Female, Mini Power0884011-01-CUIN 0884011-010884011-01-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-female power_contacts
Contact, Male, Mini Power
0883011-02Contact, Male, Mini Power0883011-02-cu0883011-02-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-male power_contacts
Contact, Female, Micro Power
562023Contact, Female, Micro Power562023-cu562023-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-female power_contacts
Contact, Male, Micro Power
562024Contact, Male, Micro Power562024-CUIN 562024562024-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-male power_contacts
Contact, Female, Mini Coax, RG174 and RG316
0884010-11Contact, Female, Mini Coax, RG174 and RG3160884010-11-CUIN 0884010-110884010-11-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-female
Contact, Male, Mini Coax, RG316
0883010-11Contact, Male, Mini Coax, RG3160883010-11-CU0883010-11 REV D0883010-11-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, Female, Mini Coax, RG178
0884010-10Contact, Female, Mini Coax, RG1780884010-10-CUIN 0884010-100884010-10-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-female
Contact, Male, Mini Coax, RG178
0883010-10Contact, Male, Mini Coax, RG1780883010-10-CU0883010-10-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, Female, Mini Coax, RG316DS
0884010-07Contact, Female, Mini Coax, RG316DS0884010-07-CUIN 0884010-070884010-07-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-female
Contact, Male, Mini Coax, RG316DS
0883010-07Contact, Male, Mini Coax, RG316DS0883010-07-CU0883010-07-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, Female, Mini Coax, joy-014
0884010-13Contact, Female, Mini Coax, joy-0140884010-13-CUIN 0884010-130884010-13-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-female
Contact, Male, Mini Coax, Joy 014
0883010-13Contact, Male, Mini Coax, Joy 0140883010-13-CUIN 0883010-130883010-13-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, Female, Micro Coax, RG178
561201Contact, Female, Micro Coax, RG178561201-CU561201-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-female
Contact, Male, Micro Coax, RG178
562201Contact, Male, Micro Coax, RG178562201-CUIN 562201562201-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, Male, Mini Coax, RG178, Special
0883010-08Contact, Male, Mini Coax, RG178, SpecialIN913010883010-08-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, Female, Coax P Series, 10GHz, 50Ohm, .086"Conformable Coax.
562378Contact, Female, Coax P Series, 10GHz, 50Ohm, .086"Conformable Coax.

The P Series coax contacts were developed by MAC Panel to provide outstanding performance up to 26GHz. With a proprietary double spring design, the P contacts mate perfectly every-time with zero face to face air gap, thus improving technical performance and repeatability when compared with the competition.

Product Families Used In:
–SCOUT
-TITAN
-APEX

  • P Series contacts can be terminated in patch cords to both SMA and 2.92mm Contacts.
  • With the SMA version, performance is up to 10GHz and with 2.92mm this extends up to 26GHz. Full performance data is provided on the website.
  • For applications that require the best, repeatable performance, MAC Panel will manufacture patch cords and provide serialization and a technical performance report with each cable. This is particularly advantageous for higher frequencies where quality of assembly directly impacts cable performance.
  • Our highly skilled applications team are available to help with any specific requests.
  • Recommended for sale as part of a Patch cord to achieve greater than 10Ghz
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-female
Contact, Female, Coax, RG316
7865100Contact, Female, Coax, RG3167865100-cuIN 78651007865100-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-female
Contact, ITA, Coax P Series, 10GHz, 50Ohm, .086"Conformable Coax.
562377Contact, ITA, Coax P Series, 10GHz, 50Ohm, .086"Conformable Coax.

The P Series coax contacts were developed by MAC Panel to provide outstanding performance up to 26GHz. With a proprietary double spring design, the P contacts mate perfectly every-time with zero face to face air gap, thus improving technical performance and repeatability when compared with the competition.

Product Families Used In:
–SCOUT
-TITAN
-APEX

    • P Series contacts can be terminated in patch cords to both SMA and 2.92mm Contacts.
    • With the SMA version, performance is up to 10GHz and with 2.92mm this extends up to 26GHz. Full performance data is provided on the website.
    • For applications that require the best, repeatable performance, MAC Panel will manufacture patch cords and provide serialization and a technical performance report with each cable. This is particularly advantageous for higher frequencies where quality of assembly directly impacts cable performance.
    • Our highly skilled applications team are available to help with any specific requests.
    • Recommended for sale as part of a Patch cord to achieve greater than 10Ghz
    • See “Related Parts” tab for modules this contact is used in.
    • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, Male, Coax, RG316
7865200Contact, Male, Coax, RG3167865200-cuIN 78652007865200-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, Female, Coax, SMB
7865100-02Contact, Female, Coax, SMB7865100-02-CU7865100-02-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-female
Contact, Male, Coax, SMB
7865200-02Contact, Male, Coax, SMB7865200-02-CU7865200-02-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, Female, Coax, RG179, 75 Ω
7865100-03Contact, Female, Coax, RG179, 75 Ω7865100-03-CUIN 7865100-037865100-03-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-female
Contact, Male, Coax, RG179, 75½
7865200-03Contact, Male, Coax, RG179, 75½7865200-03-CUIN 7865200-03785200-03-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, Female, Coax, RG142
7865100-04Contact, Female, Coax, RG1427865100-04-CUIN 7865100-047865100-04-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-female
Contact, Male, Coax, RG142
7865200-04Contact, Male, Coax, RG1427865200-04-CUIN 7865200-047865200-04-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, Female, Coax, 3.5mm
7865100-16Contact, Female, Coax, 3.5mm

Shield Plating

Au (Gold) over Ni (Nickel)

Wire Type ( Max. Suggested Frequency )

26.5GHz Wire Type dependent

Shield Material

BeCu

Insertion Loss

.06 √f(GHz) dB

Impedance

50 Ohms

Rated Contact Frequency Range

DC – 26.5 GHz

Operating Current

5 Amps ( Continuous )

Dielectric Withstanding Voltage (DWV)

750 Volts RMS

Center Conductor Plating

Au (Gold) over Ni (Nickel)

Center Conductor Material

Brass

VSWR

1.08 to 18GHz, 1.15 to 26.5GHz

Cycle Life

10000

Insulation Resistance

5000 MEGohms

Termination

3.5mm Receptacle

Select Quantity:
Contact, Female, Coax, SMA
7865100-05Contact, Female, Coax, SMA7865100-05-CU7865100-05-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-female
Contact, Male, Coax, 3.5mm
7865200-16Contact, Male, Coax, 3.5mm

Shield Plating

Au (Gold) over Ni (Nickel)

Wire Type ( Max. Suggested Frequency )

26GHz Wire Type dependent

Shield Material

BeCu

Insertion Loss

.06 √f(GHz) dB

Impedance

50 Ohms

Rated Contact Frequency Range

DC – 26 GHz

Operating Current

5 Amps ( Continuous )

Dielectric Withstanding Voltage (DWV)

1000 VDC

Center Conductor Plating

Au (Gold) over Ni (Nickel)

Center Conductor Material

Brass

VSWR

1.30 to 26.5GHz, 1.35 to 32GHz

Cycle Life

10000

Insulation Resistance

2000 Mohms

Termination

3.5mm Receptacle

Select Quantity:
Contact, Male, Coax, SMA
7865200-05Contact, Male, Coax, SMA7865200-05-CU7865200-05-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, ITA, Coax, 2.92mm Female
7865200-08Contact, ITA, Coax, 2.92mm Female7865200-08-CU7865200-08-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, Receiver, Coax, 2.92mm Female
7865100-08Contact, Receiver, Coax, 2.92mm Female7865100-08-CU7865100-08-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-female
Contact, Receiver, Coax H Freq, DC- 12GHz, 50Ohm RG316DS
7865100-12Contact, Female, Coax, RG316DS7865100-12 Rev B
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-female
Contact, Male, Coax, RG316DS
7865200-12Contact, Male, Coax, RG316DS7865200-12_REV B
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, Female, pneumatic
5511791Contact, Female, pneumatic5511791-cu
    • See “Related Parts” tab for modules this contact is used in.
    • Type SCT
    • Flow (mm) 3
    • Max Working Pressure 15 Bar
    • Working Temperatures (°C)-15° to +90°
    • Double shut off
    • Seals are Nitrile
Select Quantity:
contacts contacts-female other_contacts pneumatic_contacts
Contact, Female, Pneumatic, Mini
563036Contact, Female, Pneumatic, Mini563036-CU563036-3D563036.stp
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-female other_contacts pneumatic_contacts
Contact, Female, POF,
5512657Contact, Female, POF,5512657-CUIN_POF-MOST_Assembly
  • To suit 1mm core, 3mm sheathing
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-female fiber_optic_contacts pof_contacts
Contact, Female, twinax/triax
7864100-01Contact, Female, twinax/triax7864100-01-CU7864100-01-3D

Rated Contact Frequency Range

500 MHz

Insulation Resistance

5000 Mohms

Dielectric Withstanding Voltage (DWV)

1500 RMS Center Conductor to Inner Conductor. 500 RMS Inner Conductor to Outer Conductor.

Cycle Life

500 Min.

Assembly

Requires solder and Spanners for Wrench Crimp

Wire Type

M17/176-00002

Select Quantity:
contacts contacts-female triax-contacts twinax-contacts
Contact, Male, Coax
0883023-01Contact, Male, Coax0883023-01-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
coax_contacts contacts contacts-male
Contact, Male, pneumatic
5511792Contact, Male, pneumatic5511792-cu
    • See “Related Parts” tab for modules this contact is used in.
    • Type SCT
    • Flow (mm) 3
    • Max Working Pressure 15 Bar
    • Working Temperatures (°C)-15° to +90°
    • Double shut off
    • Seals are Nitrile
Select Quantity:
contacts contacts-male other_contacts pneumatic_contacts
Contact, Male, Pneumatic, Mini
563037Contact, Male, Pneumatic, Mini563037-CU563037-3D563037.stp
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-male other_contacts pneumatic_contacts
Contact, Male, POF,
5512656Contact, Male, POF,5512656-CUIN_POF-MOST_Assembly
  • To suit 1mm core, 3mm sheathing
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-male pof_contacts
Contact, Male, twinax/triax
7864200-01Contact, Male, twinax/triax7864200-01-CU7864200-01-3D

Assembly

Requires solder and Spanners for Wrench Crimp

Rated Contact Frequency Range

500 MHz

Insulation Resistance

5000 Mohms

Dielectric Withstanding Voltage (DWV)

1500 RMS Center Conductor to Inner Conductor. 500 RMS Inner Conductor to Outer Conductor.

Cycle Life

500 Minimum

Wire Type

M17/176-00002

Select Quantity:
contacts contacts-male triax-contacts twinax-contacts
Contact, Receiver/ITA, Signal, Crimp, 22-26 AWG
7853106-03Contact, Receiver/ITA, Signal, Crimp, 22-26 AWG7853106-03-CUIN911077853106-03-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-female contacts-male signal_contacts
Contact, Receiver/ITA, Signal, Crimp, 28-32 AWG
7853106-02Contact, Receiver/ITA, Signal, Crimp, 28-32 AWG7853106-02-CUIN911077853106-02-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-female contacts-male signal_contacts
Contact, Female, Receiver, 1.5mm for MOST
5512628Contact, Female, Receiver, 1.5mm for MOST5512628-CUIN_POF-MOST_Assembly
Select Quantity:
contacts contacts-female fiber_optic_contacts other_contacts pof_contacts
Contact, Male, ITA, 1.5mm for MOST
5512627Contact, Male, ITA, 1.5mm for MOST5512627-CUIN_POF-MOST_Assembly
Select Quantity:
contacts contacts-male fiber_optic_contacts other_contacts pof_contacts
Contact, Male, Signal
0883022-01Contact, Male, Signal0883022-01-CU0883022-01-3D
  • See “Related Parts” tab for modules this contact is used in.
  • Need Patch Cords? Try Easy Cable
Select Quantity:
contacts contacts-male signal_contacts
Module, ITA, XBeam Optical, 32 Position, SCOUT/TITAN
565427Module, ITA, XBeam Optical, 32 Position, SCOUT/TITAN565427.stp
Need Optical Patch Cords? Try Optical Easy Cable

Select Quantity:
ita-modules modules
Module, Receiver, Signal, 200 Position,1mm, Discrete
562897Module, Receiver, Signal, 200 Position,1mm, Discrete562897-CU562897-3D562897-RevA-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, ITA, Signal, 200 Pos,1mm Contacts PCB in Positions A1, A2, A3, A4.
562654Module, ITA, Signal, 200 Pos,1mm Contacts PCB in Positions A1, A2, A3, A4.
  • See “Related Parts” tab for contacts used.

Select Quantity:
ita-modules modules
Module, ITA, Signal, 200 Position, 1mm Discrete
561896Module, ITA, Signal, 200 Position, 1mm Discrete561896-CU561896-3D561896-RevA-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, Receiver, Signal, 200 Position, 1mm, Loaded, PCB
562896Module, Receiver, Signal, 200 Position, 1mm, Loaded, PCB562896-CU562896-3D562896-RevB-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, ITA, Signal, 200 Position, Loaded, PCB 1mm
561897Module, ITA, Signal, 200 Position, Loaded, PCB 1mm561897-CU561897-3D561897-RevA-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module,Receiver, Hybrid, 100/10 Position,Crimp,1mm
562179Module,Receiver, Hybrid, 100/10 Position,Crimp,1mm562179-CU562179-3D562179-RevA-STP
Select Quantity:
modules receiver-modules
Module, ITA, Hybrid, 100/10 Position,Crimp,1mm
562181Module, ITA, Hybrid, 100/10 Position,Crimp,1mm562181-CU562181-3D562181-RevA-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, Receiver, Hybrid, 100/10 Position,PCB,1mm Signal
562180Module, Receiver, Hybrid, 100/10 Position,PCB,1mm Signal562180-CU562180-3D562180-RevA-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, ITA, Hybrid, 100/10 Position, PCB
562182Module, ITA, Hybrid, 100/10 Position, PCB562182-CU562182-3D562182-RevA-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, ITA, Mini Coax and Mini Power, 24 Positions
562286Module, ITA, Mini Coax and Mini Power, 24 Positions562286
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, ITA, Micro Coax and Micro Power, 59 Positions
562284Module, ITA, Micro Coax and Micro Power, 59 Positions562284
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, ITA, Signal, Discrete, 96 Position
561411Module, ITA, Signal, Discrete, 96 Position561411-CU561411-3D561411-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, Receiver, Mini Coax and Mini Power, Power, 24 Positions
562285Module, Receiver, Mini Coax and Mini Power, Power, 24 Positions562285-stp
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, Receiver, Micro coax and Micro Power, Power, 59 Positions
562283Module, Receiver, Micro coax and Micro Power, Power, 59 Positions562283-stp
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, Receiver, Power, 152 Position, .6" to .625" Ctrs
561764Module, Receiver, Power, 152 Position, .6" to .625" Ctrs561764-CU561764-3D561764-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, Receiver, Signal, Discrete, 96 Position
561311Module, Receiver, Signal, Discrete, 96 Position561311-CU561311-3D561311-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, Receiver, 4-Pos, High Power
562295Module, Receiver, 4-Pos, High Power562295.stp
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, ITA, Coax, Hi Frequency, 9 Positions for SMA
561409Module, ITA, Coax, Hi Frequency, 9 Positions for 3.5mm/SMA561409-CU561409-3D561409-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, ITA, High Frequency Coax, 18 Position, 50/75 Ohm
561408Module, ITA, High Frequency Coax, 18 Position, 50/75 Ohm561408-CU561408-3D561408-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, ITA, High Frequency,Coax, 40 GHz, 12 Position
561412Module, ITA, High Frequency,Coax, 40 GHz, 12 Position561412-CU561412-3D561412-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, ITA, Twinax/Triax, 6 Position
561418Module, ITA, Twinax/Triax, 6 Position561418-CU561418-3D561418-STP

Pin Out Information

Download Customer Drawing

Dielectric Withstanding Voltage (DWV)

1500 VDC Min

Material:

NEMA Grade Epoxy Glass G-10

Finish:

Legend Screened White

Select Quantity:
ita-modules modules
Module, TITAN, ITA, 32 Position, 50 / 75 Ohm, Coax
561442Module, TITAN, ITA, 32 Position, 50 / 75 Ohm, Coax561442-CU561442-3D561442-STP
  • Receivers house all receiver side modules, PCB adapters, cable assemblies and patchcords, as well as DAKs (SCOUT only) and mate with the interchangeble test adapater (ITA).
  • The ITA Frame mates to the receiver and houses modules, PCB adapters, cable assemblies and patchcords which connect to the UUT.
Select Quantity:
ita-modules modules
Module, TITAN, Receiver, 256 Position, .6" to .625" Ctrs
561680Module, TITAN, Receiver, 256 Position, .6" to .625" Ctrs561680-CU561680- 3D561680-RevA-STP

Material

NEMA Grade Epoxy Glass G-10

Legend

Screened White on Black

Dielectric Withstanding Voltage (DWV)

1500 VDC Min

Select Quantity:
modules receiver-modules
Module, TITAN/ SCOUT, ITA, 20 Position, Coax "P" Series
562455Module, TITAN/ SCOUT, ITA, 20 Position, Coax "P" Series562455.stp_
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, ITA, HDI / DIN Signal, 96 Position
561413Module, ITA, HDI / DIN Signal, 96 Position561413-CU561413-3D561413-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, ITA, Signal, 200 Position, Discrete.
561421Module, ITA, Signal, 200 Position, Discrete.561421-CU561421-3D561421-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, ITA, Signal, 200 positions ( supplied with contacts fitted )
562055Module, ITA, Signal, 200 positions ( supplied with contacts fitted )562055-CU562055-3D562055-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, ITA, Coax, 152 Position, .6" to .625" Ctrs
561433Module, ITA, Coax, 152 Position, .6" to .625" Ctrs561433-CU561433-3D561433-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, ITA, Hybrid, Pneumatic (4) Plus Signal (24)
5511790Module, ITA, Hybrid, Pneumatic (4) Plus Signal (24)5511790-CU5511790-3D5511790-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, ITA, POF / MOST
561438Module, ITA, POF / MOST561438-cu
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, ITA, Power, 152 Position, .6" to .625" Ctrs
561763Module, ITA, Power, 152 Position, .6" to .625" Ctrs561763-CU561763-RevA-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, TITAN, Receiver & ITA Vacuum
561339Module, TITAN, Receiver & ITA Vacuum561339-CU561339-3D
Select Quantity:
ita-modules modules receiver-modules
Module, Receiver, TITAN, Thermocouple, 62 Position
562148Module, Receiver, TITAN, Thermocouple, 62 Position562148-CU562148-3D562148-RevB-STP
  • Select Thermocouple Type before adding to quote request.
  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, ITA, TITAN, 256 Position, .6" to .625" Ctrs
561681Module, ITA, TITAN, 256 Position, .6" to .625" Ctrs561681-CU561681-3D561681-RevA-STP

Dielectric Withstanding Voltage (DWV)

1500 VDC Min

Material

NEMA Grade Epoxy Glass G-10

Legend

Screened White on Black

Select Quantity:
ita-modules modules
Module, ITA, TITAN, Thermocouple, 62 Position
562149Module, ITA, TITAN, Thermocouple, 62 Position562149-CU562149-3D562149-RevA-STP
  • Select Thermocouple Type before adding to quote request.
  • Need Patch Cords? Try Easy Cable

Select Quantity:
ita-modules modules
Module, Receiver, High Frequency Coax, 18 Position, 50/75Ohm
561308Module, Receiver, High Frequency Coax, 18 Position, 50/75Ohm561308-CU561308-3D561308-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Connector, 96 Pin, 3 Amp Max., ITA
D754000-C1Part #: D754000/C1

Connector, 96 Pin, 3 Amp Max, ITA,

D754000-C1-CU

Current

3 AMP Max

Resistance

15 milliohms

Inductance

20nH

Capacitance

4pF

Voltage

250 VDC

Plating: Receptacle

Gold per MIL-G-45204

Impedence

40 – 60 Ohm

Bandwidth

100 MHz

Material: Pin

Brass

Durability

>25000 Cycles

Material: Housing

Thermoplastic Glass Filled UL94V-0

Select Quantity:
ita-modules modules
Module, TITAN/ SCOUT, Receiver, 20 Position, Coax "P" Series
562456Module, TITAN/ SCOUT, Receiver, 20 Position, Coax "P" Series562456.stp
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, Receiver, Coax, Hi Frequency, 9 Positions for SMA
561309Module, Receiver, Coax, Hi Frequency, 9 Positions for SMA561309-CU561309-3D561309-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, TITAN, Receiver, 32 Position, 50 / 75 Ohm, Coax
561342Module, TITAN, Receiver, 32 Position, 50 / 75 Ohm, Coax561342-CU561342-3D561342-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, Receiver, Triax, 6 Position
561318Module, Receiver, Triax, 6 Position561318-CU561318-3D561318-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, Receiver, Hi-Frequency, 40 GHz, 12 Position
561312Module, Receiver, Hi-Frequency, 40 GHz, 12 Position561312-CU561312-3D561312-STP
Pin Out Information

Download Customer Drawing

Dielectric Withstanding Voltage (DWV)

1500 VDC Min

Material

Aluminum Alloy

Finish

Legend Screened Black

Select Quantity:
modules receiver-modules
Module, Receiver, XBeam Optical, 32 Position, SCOUT/TITAN
565426Module, Receiver, XBeam Optical, 32 Position, SCOUT/TITAN565426.stp
Need Optical Patch Cords? Try Optical Easy Cable

Select Quantity:
modules receiver-modules
Module, Receiver, POF / MOST
561338Module, Receiver, POF / MOST561338-cu
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, Receiver, Hybrid, (4) Pneumatic plus (24) Signal
5511789Module, Receiver, Hybrid, (4) Pneumatic plus (24) Signal5511789-CU5511789-3D5511789-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, Receiver, Coax, 152 Position, .6" to .625" Ctrs
561333Module, Receiver, Coax, 152 Position, .6" to .625" Ctrs561333-CU561333-3D561333-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, Receiver, Signal, 200 Position Discrete.
561321Module, Receiver, Signal, 200 Position Discrete.561321-CU561321-3D561321-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Enclosure, ITA, 25 Slot, Hinged, Recessed Handle, 6Ó Deep, TITAN
561303Module, Receiver, Signal, 200 Position ( supplied with contacts fitted )561303-CU561303-3D561303-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
Module, Receiver, HDI / DIN Signal, 96 Position
561313Module, Receiver, HDI / DIN Signal, 96 Position561313-CU561313-3D561313-STP
  • See “Related Parts” tab for contacts used.

  • Need Patch Cords? Try Easy Cable

Select Quantity:
modules receiver-modules
ITA module 562277
562277ITA module 562277562277.stp
  • See “Related Parts” tab for contacts used.
Select Quantity:
ita-modules modules
Receiver module 562276
562276Receiver module 562276562276.stp
  • See “Related Parts” tab for contacts used.
Select Quantity:
modules receiver-modules
Blank Module, TITAN, ITA / Receiver.
561652Blank Module, TITAN, ITA / Receiver.561652-CU561652-3D561652-RevC-STP

Color :

Black

* Replaces

561310 *

Supplied with :

2 x 4-40UNC mounting screws

Material :

NEMA Grade Epoxy Glass G-10

——————–

——————–

Select Quantity:
accessories
Header, 2 X 25 for 200 Position HDI
7853150-01Header, 2 X 25 for 200 Position HDI7853150-01-CU7853150-01-3D7853150-01-STP

Finish

Molded Black Module

Requires

4 Total for Full Module Wiring

Material

Flame Retardant Thermoplastic

Select Quantity:
accessories
Header, ITA, 160 Position
M024070Header, ITA, 160 PositionM024070-CUM024070-RevA-STP

Material

Glass Filled Polymer

Select Quantity:
accessories
Header, ITA, 96 Pin DIN, For Crimp Contact Receptacle
7853109-01Header, ITA, 96 Pin DIN, For Crimp Contact Receptacle7853109-01-CUIN913247853109-01-3D

Material

Glass Filled Polymer

Finish

Legend Screened Black

Select Quantity:
accessories
Header, Receiver, 96 Pin DIN, For Crimp Contact Receptacle
7853109-03Header, Receiver, 96 Pin DIN, For Crimp Contact Receptacle7853109-03-CUIN913247853109-03-3D

Finish

Legend Screened Black

Material

Glass Filled Polymer

Select Quantity:
accessories
Module,Blank,Receiver/ITA,6U
564413Module,Blank,Receiver/ITA,6U564413-CU
Select Quantity:
accessories
Fixed Mounting Faceplate, 10 Slot, TITAN, 5U
561366Fixed Mounting Faceplate, 10 Slot, TITAN, 5U561366-CU561366-3D561366-STP

Finish

Black Anodized

Material

Aluminum

Select Quantity:
accessories
Fixed Mounting Faceplate, 15 Slot, TITAN, 5U
561367Fixed Mounting Faceplate, 15 Slot, TITAN, 5U561367-CU561367-3D561367-STP

Material

Aluminum

Finish

Black Anodized

Select Quantity:
accessories
Fixed Mounting Faceplate, 2 Slot, TITAN, 5U
561364Fixed Mounting Faceplate, 2 Slot, TITAN, 5U561364-CU561364-3D561364-STP

Material

Aluminum

Finish

Black Anodized

Select Quantity:
accessories
Fixed Mounting Faceplate, 25 Slot, TITAN, 5U
561368Fixed Mounting Faceplate, 25 Slot, TITAN, 5U561368-CU561368-3D561368-STP

Material

Aluminum

Finish

Black Anodized

Select Quantity:
accessories
Fixed Mounting Faceplate, 5 Slot, TITAN, 5U
561365Fixed Mounting Faceplate, 5 Slot, TITAN, 5U561365-CU561365-3D561365-STP

Material

Aluminum

Finish

Black Anodized

Select Quantity:
accessories
Module Blank, TITAN Rec / ITA
561310Module Blank, TITAN Rec / ITA561310-CU

Finish

Anodized Black

Suggest using

561652 instead.

Material:

Aluminum Alloy

Select Quantity:
accessories
Part #: D753000/C1Adapter, PCB, 96 Pin, Rec., Right Angled Pins
D753000-C1Part #: D753000/C1

Adapter, PCB, 96 Pin, Rec., Right Angled Pins

Current

3 Amp Max.

Material

BeCu

Resistance

15 milliohms

Select Quantity:
accessories
Protective Cover, ITA, 10 Slot, TITAN
561461Protective Cover, ITA, 10 Slot, TITAN561461-CU561461-3D561461-STP

Protective Covers protect modules, plugs, and sockets and their respective contacts while not in use.

Select Quantity:
accessories protective-covers
Protective Cover, ITA, 15 Slot, TITAN
561462Protective Cover, ITA, 15 Slot, TITAN561462-CU561462-3D561462-STP

Protective Covers protect modules, plugs, and sockets and their respective contacts while not in use.

Select Quantity:
accessories protective-covers
Protective Cover, ITA, 2 Slot, TITAN
561459Protective Cover, ITA, 2 Slot, TITAN561459-CU561459-3D561459-STP

Protective Covers protect modules, plugs, and sockets and their respective contacts while not in use.

Select Quantity:
accessories protective-covers
Protective Cover, ITA, 25 Slot, TITAN
561463Protective Cover, ITA, 25 Slot, TITAN561463-CU561463-3D561463-STP

Protective Covers protect modules, plugs, and sockets and their respective contacts while not in use.

Select Quantity:
accessories protective-covers
Protective Cover, ITA, 5 Slot, TITAN
561460Protective Cover, ITA, 5 Slot, TITAN561460-cu561460-3D561460-STP

Protective Covers protect modules, plugs, and sockets and their respective contacts while not in use.

Select Quantity:
accessories protective-covers
Protective Cover, ITA, Hz
561399Protective Cover, ITA, Hz

Protective Covers protect modules, plugs, and sockets and their respective contacts while not in use.

Select Quantity:
accessories protective-covers
Protective Cover, Receiver, 10 Slot, TITAN
561361Protective Cover, Receiver, 10 Slot, TITAN561361-CU561361-3D561361-STP

Protective Covers protect modules, plugs, and sockets and their respective contacts while not in use.

Select Quantity:
accessories protective-covers
Protective Cover, Receiver, 15 Slot, TITAN
561362Protective Cover, Receiver, 15 Slot, TITAN561362-CU561362-3D561362-STP

Protective Covers protect modules, plugs, and sockets and their respective contacts while not in use.

Select Quantity:
accessories protective-covers
Protective Cover, Receiver, 2 Slot, TITAN
561359Protective Cover, Receiver, 2 Slot, TITAN561359-CU561359-3D561359-STP

Protective Covers protect modules, plugs, and sockets and their respective contacts while not in use.

Select Quantity:
accessories protective-covers
Protective Cover, Receiver, 25 Slot, TITAN
561363Protective Cover, Receiver, 25 Slot, TITAN561363-CU561363-3D561363-STP

Protective Covers protect modules, plugs, and sockets and their respective contacts while not in use.

Select Quantity:
accessories protective-covers
Protective Cover, Receiver, 5 Slot, TITAN
561360Protective Cover, Receiver, 5 Slot, TITAN561360-CU561360-3D561360-STP

Protective Covers protect modules, plugs, and sockets and their respective contacts while not in use.

Select Quantity:
accessories protective-covers
Protective Cover, Receiver, 50 Slot, Dual Tier, TITAN
561345Protective Cover, Receiver, 50 Slot, Dual Tier, TITAN

Protective Covers protect modules, plugs, and sockets and their respective contacts while not in use.

Select Quantity:
accessories protective-covers
Protective Cover, TITAN, Receiver, Hz
561398Protective Cover, TITAN, Receiver, Hz561398-RevA-STP

Protective Covers protect modules, plugs, and sockets and their respective contacts while not in use.

Select Quantity:
accessories protective-covers
Receiver, TITAN, Keying Kit for 2 Slot & 5 Slot
561344Receiver, TITAN, Keying Kit for 2 Slot & 5 Slot561344-cu

Quantity

Kit Contains 4 Post’s and 4 Screws

Material

Stainless Steel

Select Quantity:
accessories
Adapter, PCB, 200 Pin HDI/ 100 Pin SCSI Female Connector, TITAN
561376Adapter, PCB, 200 Pin HDI/ 100 Pin SCSI Female Connector, TITAN561376-CU561376-3D
Receiver Interface

561303

ITA mating module

562055

Select Quantity:
pcb-connectors-and-accessories
Adapter, PCB, 8 x Ethernet, 4 x USB, With 200 PIN Module 562895
563800Adapter, PCB, 8 x Ethernet, 4 x USB, With 200 PIN Module 562895563800-CU563800-3D563800-RevB-STP
8

RJ-45

4

USB port

Note:

Pin out on customer drawing

Quantity

Features

Note:

Uses 562895 Receiver Module.

Select Quantity:
pcb-connectors-and-accessories
Adapter, PCB, Multi-DVI, Ethernet, USB
561236Adapter, PCB, Multi-DVI, Ethernet, USB561236-CU561236-3D561236-STP
Quantity

Features

3

DVI Ports for Analog or Digital

1

USB Port

1

Gigabit Ethernet Port

Select Quantity:
pcb-connectors-and-accessories
Adapter, PCB,200 Pin HDI/ (2) 68 Pin SCSI Male Connector, TITAN
561375Adapter, PCB,200 Pin HDI/ (2) 68 Pin SCSI Male Connector, TITAN561375-CU561375-3D561375-RevF-STP
Receiver Interface Modules

561303 562897

Select Quantity:
pcb-connectors-and-accessories
Adapter, PCB, 96 Pin HDI/ 96 Pin SCSI Male Connector, TITAN
561377Adapter, PCB, 96 Pin HDI/ 96 Pin SCSI Male Connector, TITAN
ITA Mating Module

561413

Receiver Interface

561313

Select Quantity:
pcb-connectors-and-accessories
Adapter, Module, PCB, ITA, 2x USB 3.1 Type A and 4x Ethernet 10GBASE-T
562410Adapter, Module, PCB, ITA, 2x USB 3.1 Type A and 4x Ethernet 10GBASE-T562410 REVA_stp
Features
4x RJ45 upto 10GBASE-T
2x USB 3.1 Type A port
Pin out on customer drawing
Select Quantity:
pcb-connectors-and-accessories
Adapter, Module, PCB, Receiver, 2x USB 3.1 Type A and 4x Ethernet 10GBASE-T
562409Adapter, Module, PCB, Receiver, 2x USB 3.1 Type A and 4x Ethernet 10GBASE-T562409 REVA-stp
Features
4x RJ45 up to 10GBASE-T
2x USB 3.1 Type A port
Pin out on customer drawing



Select Quantity:
pcb-connectors-and-accessories
Adapter, PCB with USB x 4, RJ-45 x 8, 200 pos, ITA.
561801Adapter, PCB with USB x 4, RJ-45 x 8, 200 pos, ITA.561801-CU561801-3D561801-STP
8x RJ45 Ethernet 100Mbps
4x USB2.0
Pin out on customer drawing sheet 3
Features

Mates with back of ITA module 561897 & 562055
Assign this PCB in ITA slots carefully as the RJ45 and USB sockets can encroach into the next slot space.

Select Quantity:
pcb-connectors-and-accessories
Adapter, PCB with USB X 4, RJ-45 X8, 200 pos RCVR
561800Adapter, PCB with USB X 4, RJ-45 X8, 200 pos RCVR561800-CU561800-3D561800-STP
Pin out on customer drawing

Sheet 3

Mates with back of receiver module

562896 & 561303

Quantity

Features

8

RJ-45

4

USB port

Select Quantity:
pcb-connectors-and-accessories
Adapter, PCB, 200 Pin HDI to 4 x 50 Pin Ribbon Connectors
561113Adapter, PCB, 200 Pin HDI to 4 x 50 Pin Ribbon Connectors561113-CU
Interface

200 Pin HDI

I/O

4 (each) 50 Pin Ribbon Connectors

Select Quantity:
pcb-connectors-and-accessories
Cable Strain Relief Kit
5511285Cable Strain Relief Kit5511285-CU5511285-3D5511285-STP

Includes

2 each 4-40 Screws

Material

Aluminum

Select Quantity:
accessories cable-assemblies-cable-accessories-and-patch-cords
Cable Strain Relief Kit Hybrid PCB
562425Cable Strain Relief Kit Hybrid PCB562425.stp
Includes

1off support bracket, Material Aluminum,
Stand offs 2 each 4-40 x 3/16, Material Stainless Steel
Screws 2 each 4-40 x 3/16 socket cap, 4-40 x 1/4 Pan Head, 4-40 x 1/4 Flat Head Csk, Material Stainless Steel
1off 5517272 Connector 100 pin Right Angle.

Select Quantity:
accessories
Patchcord, ITA, 7865200 Contact, RG 316 Coax
7S3600CTX316Patchcord, ITA, 7865200 Contact, RG 316 Coax
  • MAC Panel has a number of pre defined patch cords for use in our interconnect solutions.
  • Need a custom Patch Cord? Try Easy Cable
Select Quantity:
cable-assemblies-cable-accessories-and-patch-cords
Patchcord, ITA, 7865200-04 Contact, RG 142 Coax
7S3600CTX142Patchcord, ITA, 7865200-04 Contact, RG 142 Coax
  • MAC Panel has a number of pre defined patch cords for use in our interconnect solutions.
  • Need a custom Patch Cord? Try Easy Cable
Select Quantity:
cable-assemblies-cable-accessories-and-patch-cords
Patchcord, ITA, Power, 0883011-02 Contact, 10 AWG
6T3600TRS10Patchcord, ITA, Power, 0883011-02 Contact, 10 AWG
  • MAC Panel has a number of pre defined patch cords for use in our interconnect solutions.
  • Need a custom Patch Cord? Try Easy Cable
Select Quantity:
cable-assemblies-cable-accessories-and-patch-cords
Patchcord, ITA, Power, 0883011-02 Contact, 12 AWG
6T3600TRS12
