DAK Assembly
Product Description
Product Title

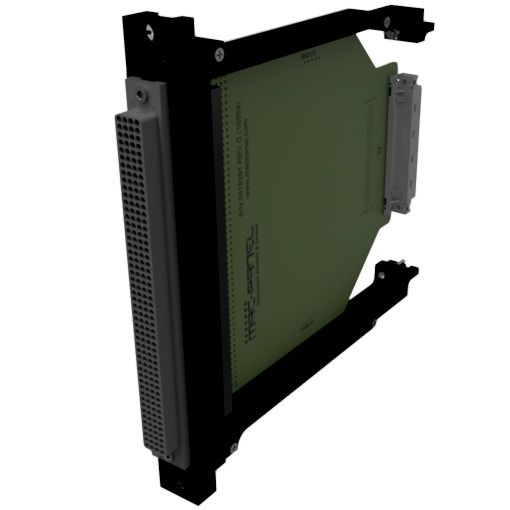

DAK,PCB,Ext,562896,160 Pin LFH,Male,1mm
PCB DAK
The majority of DAK designs utilize a PCB for connection. All PCB DAK designs incorporate comprehensive signal shielding for optimum performance and include in-situ connection points that can be used to connect external resources. All connections between the PXI instrument are less than 6”, offering superior performance and signal continuity.
Technical Specification
Receiver module used:
562896
Connectors in DAK that mate to Instrument:
160 Pos. D-Type LFH Matrix Plug; Male Pins
First Contact Used:
562152
First Contact Max Quantity:
200
Style of DAK:
PCB
Patch -cord Part Numbers for Mating ITA Modules:
PC 000 150 030 036
For alternatives please see our Easycable
Notes:
Download customer drawings for the DAK pin outs. See “Product Support Downloads” tab.
Supported Instruments:
NI Instruments
- PXI-2530B
Mating Module to DAK:
For Recommendations see “Associated Parts” tab.
REACH Compliance:
Yes
DAK Description::
DAK,PCB,Ext,562896,160 Pin LFH,Male,1mm
