Introduction
Mahdy! We appreciate you taking the time to view your webpage. We hope this helps to answer any questions you have regarding our services for helping you connect to your automated test equipment.
(note: this is not an extensive list of all we provide. We do also offer wiring and cabling services, sheet metal fabrication, handheld connectors, and much more…)

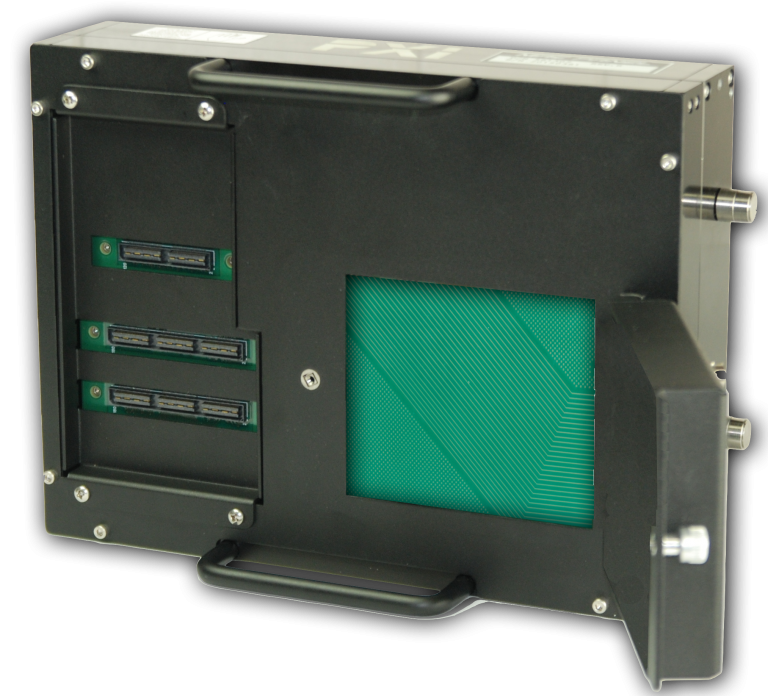

Wire Free ITAs for….
Introduction to SCOUT!
The highest performing, modular, and quickly launched mass interconnect system on the market
The Overall SCOUT Solution Offers All of These Benefits
Performance
DAKs designed with PCBs incorporate comprehensive signal shielding for optimum performance.
Modularity
Simply remove a DAK Assembly and replace it with another or swap a DAK Assembly from one system to another system.
Total Cost of Test
Higher performance, lower maintenance cost and time, and increased modularity, helps to lower cost total cost of test over the life of the tester.
Lead Time
Our research indicates a significant decrease in time-to-deployment when using a SCOUT solution over a cabled solutions.
Maintenance
Upgrading or maintaining an instrument, while using a DAK interface, will not affect anything else within the system.
Stability
Based on our conversation you will be building multiple test systems. Utilizing COTS DAKs means that when identical systems are in use each interface connection will be identical also, unlike when using cables.

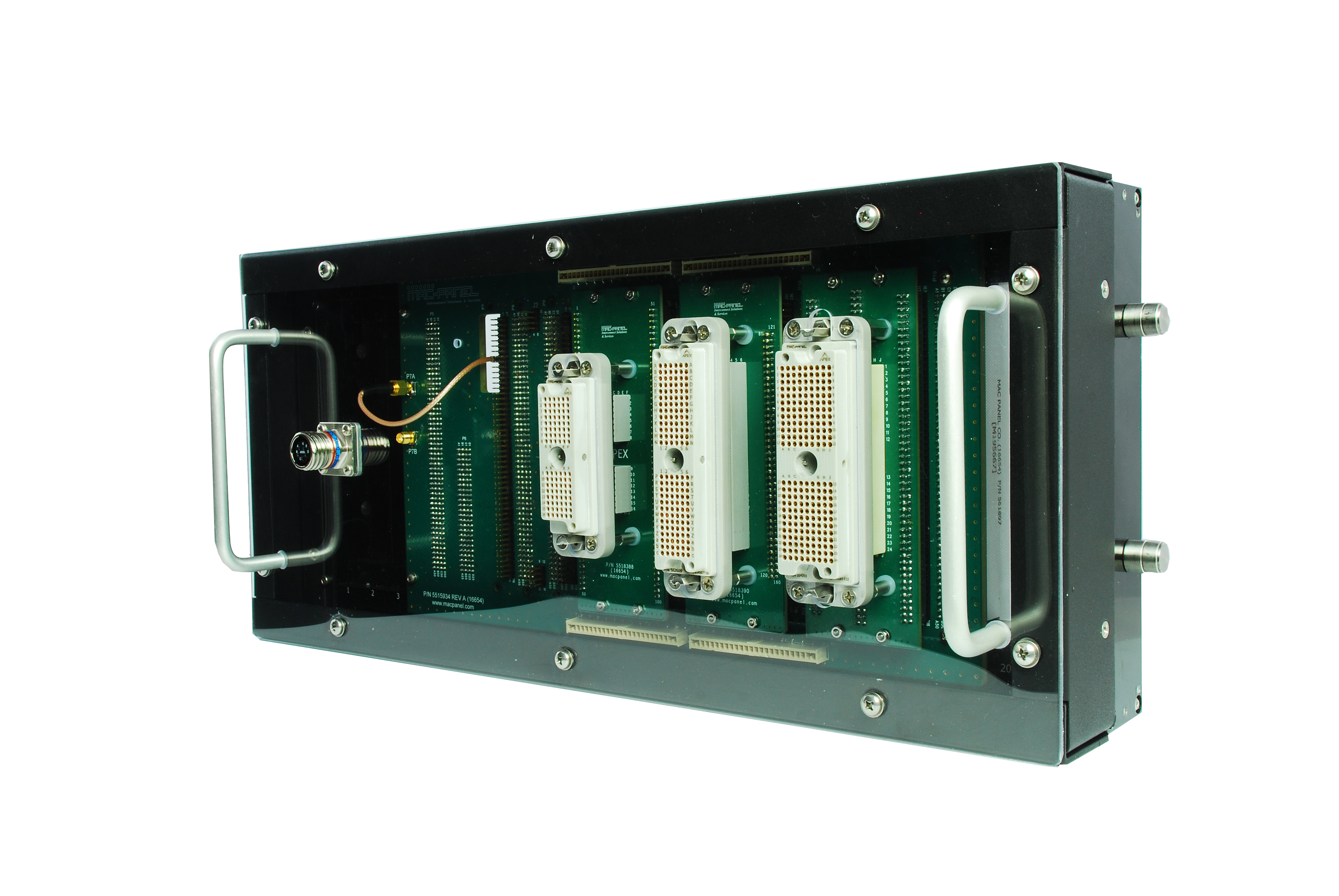

Amplify These Benefits with PCB Technology Within an ITA
Utilzing PCB ITAs increases system stability, provides increased performance, and decreases ITA wiring time as some of the few of many benefits.
Consistent Performance
- Traces within the board create interconnections between the components, and this interconnection layout cannot change with time, vibration, or environmental condition – unlike Cable interconnections which can and will change ultimately causing unreliable testing.
- This means that the circuit traces will be stable over time and provides consistent performance from initial use to final use.
- This stability also means that unit-to-unit consistency is very high when building multiple ITAs.
Initial Cost Savings
- It can take weeks to build and wire a wired ITA, whereas it will only take a few hours to assemble a PCB based ITA.
- This means that, in multiple ITA builds, the cost assembling PCB based ITAs will be exponentially lower than assembling wired ITAs.
Long Term Cost Savings
- Due to the superior signal integrity that PCB ITAs offer you will save money in the long run.
- Little to no maintenance
- Increased efficiency in test
- No downtime spent repairing cabled connections.
Case Study
[dflip id=”40092″ ]
Why Partner With MAC Panel?
Because your product may come in a box but the solution does not!
At MAC Panel we believe in a total partner approach to providing you with the overall best solution for your application.
How has this approach helped others?
The Partner Approach
Video
Find out how MAC Panel’s “partner approach” helped dramatically reduce the time to test
Advanced Mass Interconnect for PXI Test Architecture
WebsiteUnder tight production deadlines, EV manufacturer turns to MAC Panel for help building the perfect interconnect solution.
Meet Your Partners at MAC Panel
Matthew Greenwood
Marketing Director
